        Mecwin electric two wheeler motor

          EV Motors

          Advanced Two Wheeler Motor Solutions

          Download brochure

          MECWIN Electric Two Wheeler Motors

          MECWIN Electric Two Wheeler Motors are hub motors designed for efficient and sustainable electric mobility. Available in various sizes and power ratings, these motors provide reliable performance for two-wheelers, ensuring optimal speed, torque, and durability in diverse operating conditions.

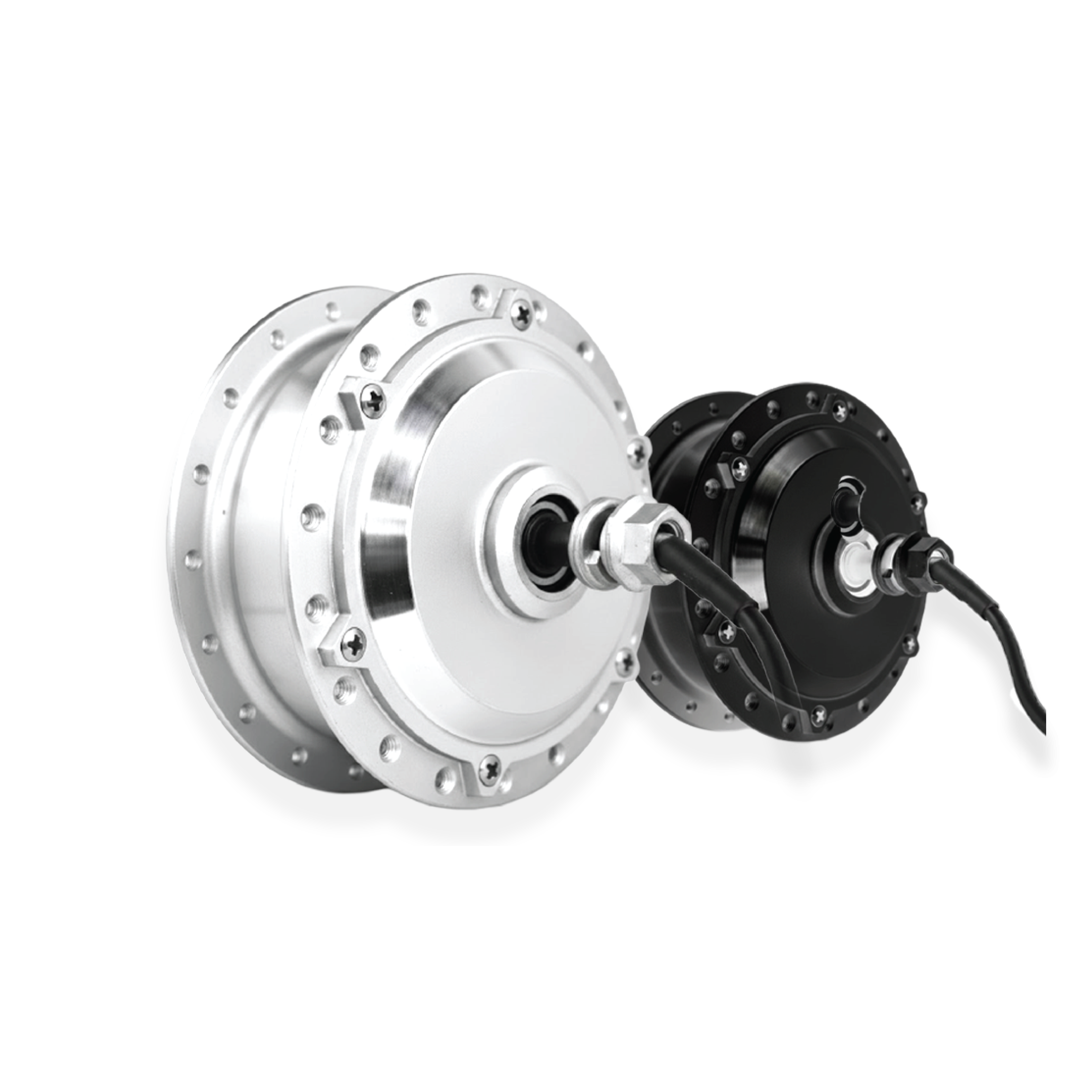

          5 Inch Hub Motor
          5 Inch Hub Motor
          Voltage Rating36V/48V
          Rated Power250W - 350W
          Max. Speed25Kmph
          Brake SystemDisc
          IP RatingIP67
          10 Inch Hub Motor
          10 Inch Hub Motor
          Voltage Rating48V/60V/72V
          Max. DC Current25A - 80A
          Rated Power250W - 2000W
          Max. Speed25Kmph - 70Kmph
          Brake System110 Drum/130 Drum/Disc
          Rim Size2.15" x 10"
          IP RatingIP67
          12 Inch Hub Motor
          12 Inch Hub Motor
          Voltage Rating48V/60V/72V
          Max. DC Current25A - 80A
          Rated Power250W - 3000W
          Max. Speed25Kmph - 80Kmph
          Brake System110 Drum/130 Drum/Disc
          Rim Size2.15" x 12"
          IP RatingIP67

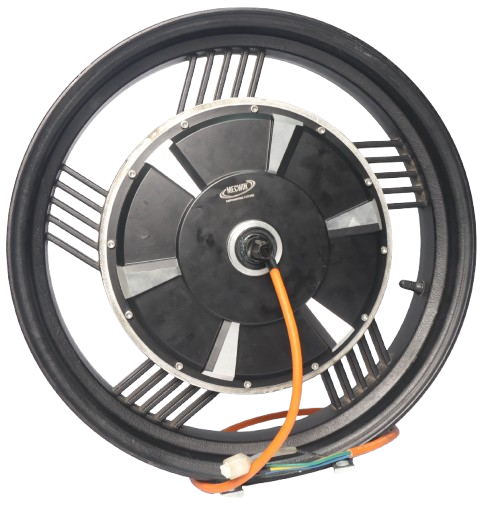

          17 Inch Hub Motor
          17 Inch Hub Motor
          Voltage Rating48V/60V/72V
          Max. DC Current45A - 80A
          Rated Power1000W - 3000W
          Max. Speed60Kmph - 100Kmph
          Brake System130 Drum/Disc
          Rim Size2.15"/2.5"/3.5" x 17"
          IP RatingIP67

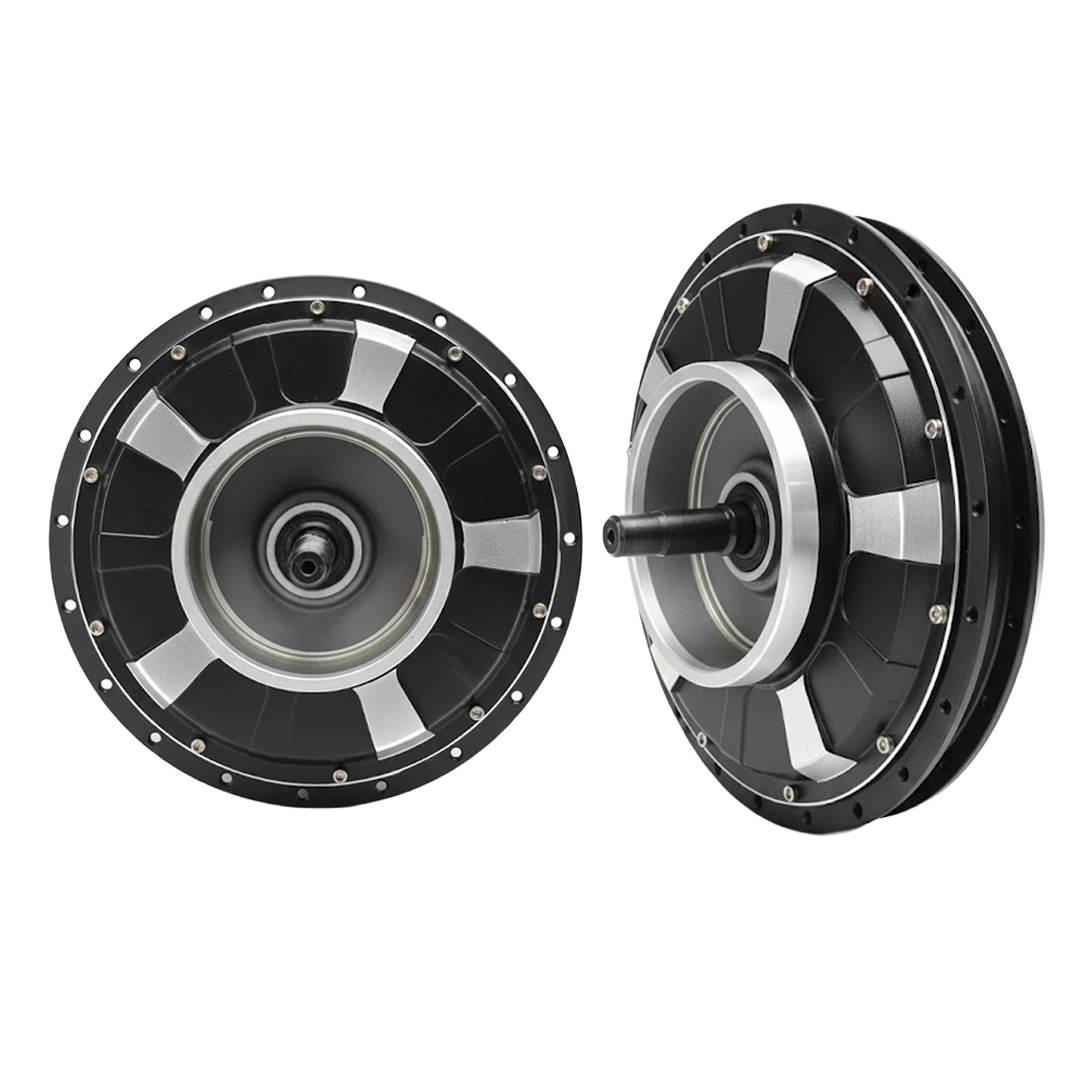

          Spokes Hub Motor
          Spokes Hub Motor
          Voltage Rating48V/60V/72V
          Max. DC Current25A - 80A
          Rated Power250W - 3000W
          Max. Speed25Kmph - 80Kmph
          Brake System110 Drum/130 Drum/Disc
          Rim Size10"/12"
          IP RatingIP67
          Hub Motor Controller
          Hub Motor Controller
          Voltage Rating48V/60V/72V
          Max. DC Current25A - 80A
          Rated Power250W - 3000W
          SensorHall Sensor Based
          CAN/NON-CANBoth are available
          App ConnectivityAvailable (GUI)
          IP RatingIP 67
