        Mecwin electric three wheeler motor

          EV Motors

          Advanced Three Wheeler Motor Solutions

          Download brochure

          MECWIN Electric Three Wheeler Motors

          MECWIN Electric Three Wheeler Motors are mid-drive motors designed for robust and efficient performance in electric three-wheelers. These motors deliver high power and speed, ensuring reliable operation in demanding conditions, with advanced cooling and gear systems for enhanced durability and efficiency.

          Mecwin Mid Motor L3
          Mid Motor - L3
          Voltage Ratings48V/60V/72V
          Max. DC Current40A - 100A
          Rated Power1000W - 1500W
          Max. Speed2000rpm - 3500rpm
          CoolingForced air
          Gear TypeHelical gear
          IP RatingIP67

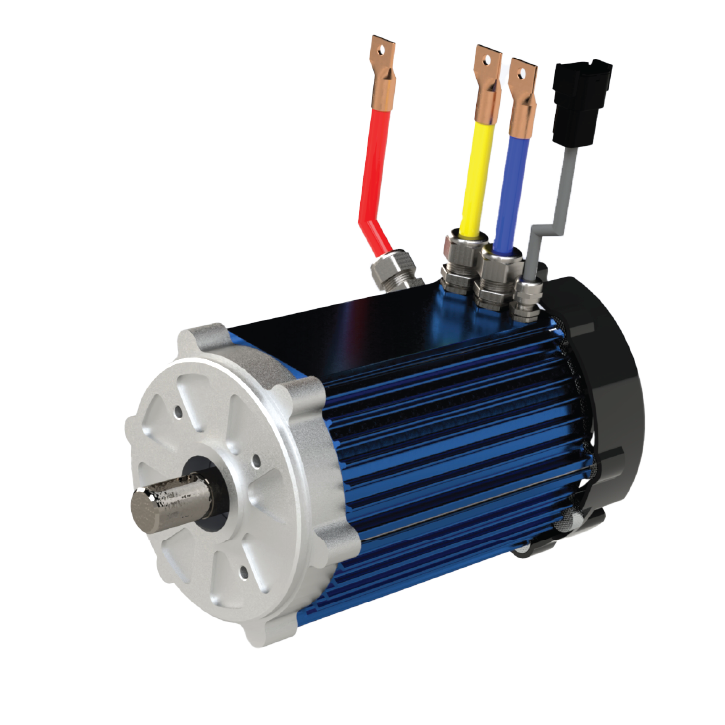

          Mecwin Mid Motor L5
          Mid Motor - L5
          Voltage Ratings48V/60V/72V
          Max. DC Current100A - 150A
          Rated Power4500W to 6000W
          Max. Speed2500rpm - 5000rpm
          CoolingForced air/Natural
          Gear TypeHelical/Spline gear
          IP RatingIP67

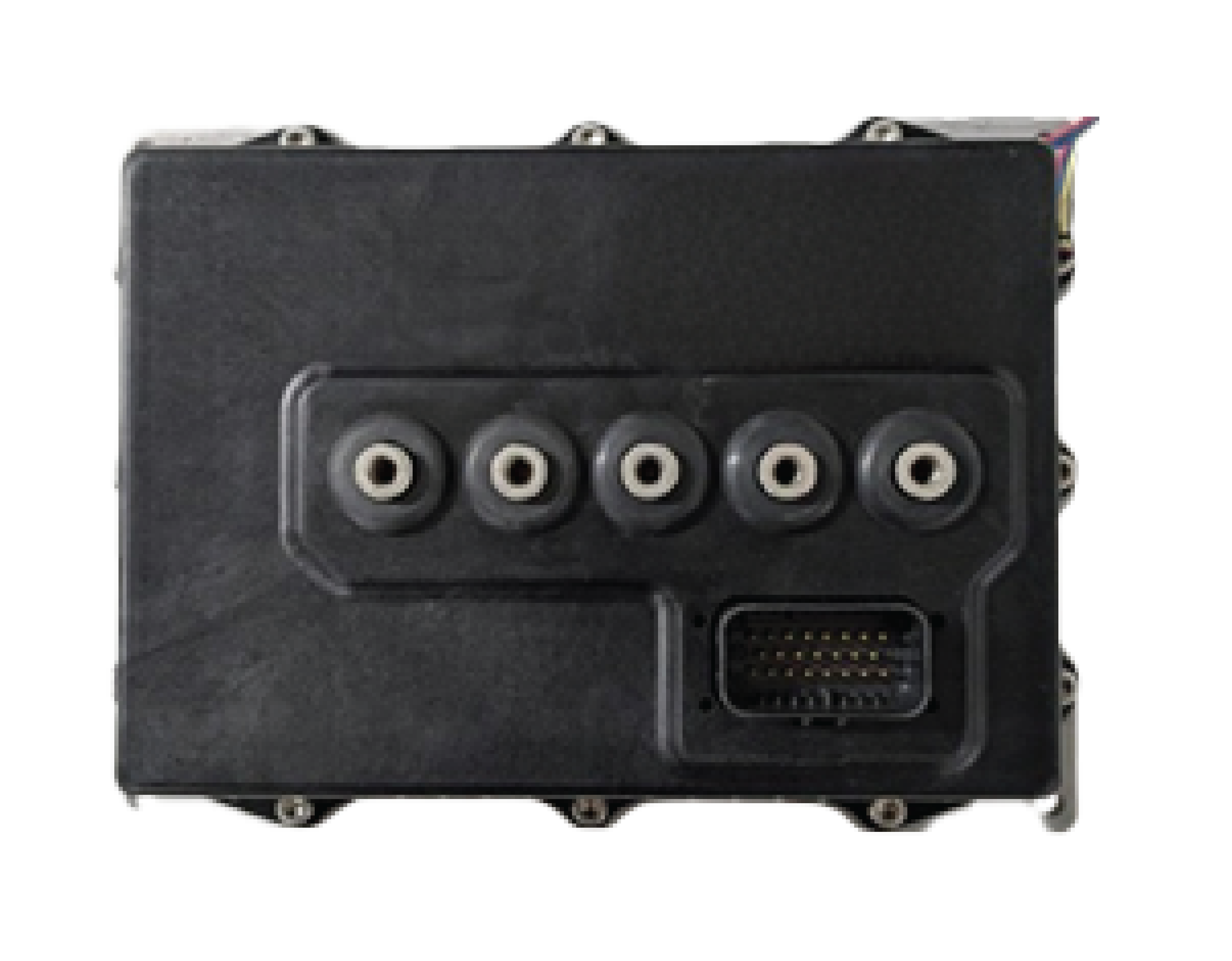

          Mecwin Mid Motor Controller
          Mid Motor Controller
          Voltage Ratings48V/60V/72V
          Max. DC Current50A - 200A
          Rated Power1000W - 5000W
          SensorHall Sensor & Encoder
          CAN/NON-CANBoth are available
          App ConnectivityAvailable (GUI)
          IP RatingIP67

          Note: Motors power transfer & mountings can be modified based on request.

          Key Features
